PVD DLC Coating: Properties, Applications, and Production Technology

PVD Diamond-Like Carbon (DLC) is a high-performance thin film composed of amorphous carbon that exhibits many of the beneficial properties of natural diamond. Applied using Physical Vapor Deposition (PVD) techniques in a vacuum chamber, this coating creates a molecularly bonded surface layer that is exceptionally hard, incredibly slick, and visually stunning.

It is not simply a black coloring; it is a functional surface treatment engineered to dramatically improve the durability, performance, and lifespan of a component.

What Is PVD DLC Coating?

PVD DLC (Diamond-Like Carbon) coating is a thin, amorphous carbon film deposited in a vacuum environment using Physical Vapor Deposition.
It combines:

• Diamond hardness → Extreme wear resistance
• Graphite smoothness → Low friction coefficient

The result is a deep black, premium finish that delivers both functional protection and aesthetic enhancement.

Key Properties of PVD DLC Coatings

DLC is distinguished by a unique combination of elite properties that make it superior to many other surface treatments.

• Extreme Hardness & Wear Resistance: With a hardness ranging from 2000 to over 9000 HV, DLC is exceptionally resistant to scratching, abrasion, and wear. This property is crucial for protecting parts in high-contact, abrasive environments.
• Ultra-Low Coefficient of Friction: DLC has one of the lowest coefficients of friction of any solid material, often below 0.1. This “slipperiness” drastically reduces drag, minimizes heat generation, and prevents parts from seizing or galling under load.
• Corrosion Resistance: The dense, chemically inert, and pinhole-free structure of a DLC film forms an impermeable barrier, effectively shielding the underlying material from moisture, acids, salts, and other corrosive agents.
• Aesthetic Quality: It provides a flawless, uniform, and deep black finish. Its smooth, premium appearance is highly valued in luxury goods and high-end consumer products.
• Biocompatibility: DLC is non-toxic and chemically inert, making it an excellent and widely used coating for medical implants, surgical instruments, and food processing equipment.

Applications of PVD DLC Coatings

The versatility of DLC allows it to be used in a vast array of demanding fields:

• Automotive & Motorsports: Critical for high-performance engine components like piston rings, valve lifters, wrist pins, and gears to reduce internal friction, increase horsepower, and improve wear resistance.

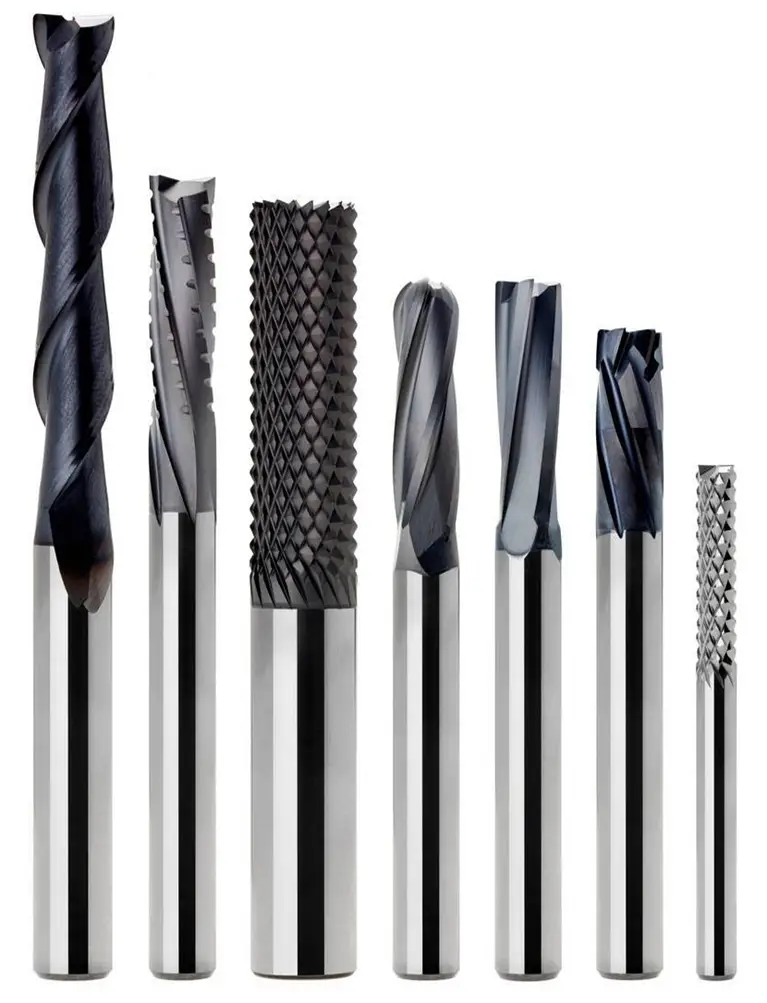

• Cutting Tools: Applied to drills, end mills, inserts, and taps. The low friction prevents material from sticking to the cutting edge (built-up edge), while the hardness extends tool life dramatically.
• Medical Field: Used on surgical instruments for a non-reflective, easy-to-clean surface and on orthopedic implants (e.g., knee and hip joints) for its biocompatibility and extreme wear resistance.
• Firearms: A preferred finish for barrels, slides, and internal components, providing superior durability, corrosion protection, and smooth action.
• Luxury and Consumer Goods: Popular for high-end watches, jewelry, golf clubs, and premium electronics where a scratch-proof, high-end black finish is desired.

Advantages of PVD DLC Coatings

• Long-Lasting Performance → Extends product life cycle
• Minimal Maintenance → Scratch-resistant and easy to clean
• Versatile Usage → Suitable for functional and decorative purposes
• Sustainable Process → Lower environmental footprint compared to plating
• Premium Aesthetic Appeal → Elevates product design and value

Which PVD Machines Can Produce DLC Coating?

DLC is deposited using specialized PVD machines that often combine several technologies to achieve the desired properties:

1. PACVD (Plasma-Assisted Chemical Vapor Deposition): A hydrocarbon gas (like Acetylene) is introduced and broken down by a plasma to deposit a low-friction hydrogenated DLC film (a-C:H).
2. Multi-Arc Ion Plating: High-current arcs vaporize solid graphite targets to create a dense, highly ionized carbon plasma, resulting in an extremely hard DLC film (a-C).
3. Magnetron Sputtering: A plasma is used to bombard a graphite target, dislodging carbon atoms that then deposit on the substrate. This method offers excellent control for smooth films.
